Model: RAS-30BKVS-A
Feature
Specification
INDOOR |
|
RAS-30BKVS-A |
OUTDOOR |
|

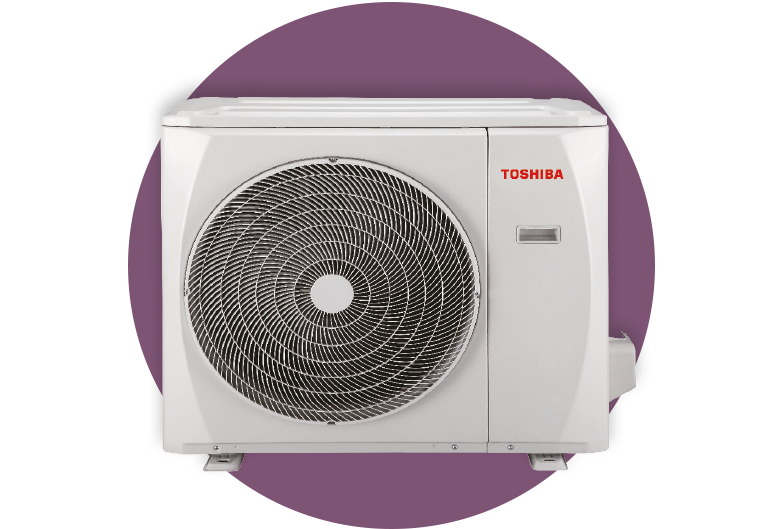

RAS-30BAVS-A |
Cooling Capacity - Rated |
kW |
8 |
Heating Capacity - Rated |
kW |
8.4 |
Energy Efficiency Ratio- Cooling (rated) |
|
3.27 |
Power input - Cooling (max) |
kW |
3.6 |
Power input - Heating (min ~ rated ~ max) |
kW |
3.3 |
Operating current - Cooling (rated) |
A |
11.06 |
Operating current - Heating (rated) |
A |
11.21 |
Refrigerant Type |
|
R410a |
Airflow Volume -indoor-Cooling (h-l) |
l/s |
347.22/236.11 |
Moisture removal |
l/hr |
3.23 |
Sound Pressure - indoor - Cooling (h-l) |
dB(A) |
51-38 |
Dimension indoor (HxWxD) |
mm |
338 x 1082 x 225 |
Dimension outdoor (HxWxD) |
mm |
810 x 946 x 420 |
Net Weight indoor |
kg |
13.5 |
Net Weight outdoor |
kg |
62 |
Operating range - Cooling |
ºC |
-10~46 |
Pipe size-Liquid Side |
(mm/inch) |
9.52(3/8") |
Pipe size-Gas Side |
(mm/inch) |
15.9 (5/8") |
Maximum Piping Length |
(m) |
40 |
Maximum Piping Height difference |
(m) |
20 |
Chargeless Length |
(m) |
5 |
Compressor type |
|
DC Rotary |
Power Supply |
V/ph/Hz |
220-240/1/50 |
Warranty
'5-Year parts and labour' warranty
