Overview

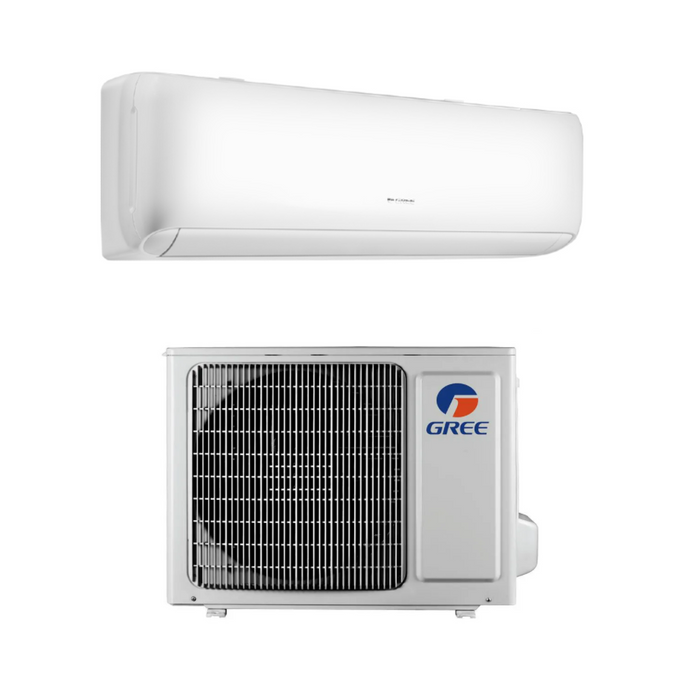

The Alto Series of air conditioners lets you indulge in ultimate tranquillity within your home. This compact stylish, and elegant series is specifically designed to offer reliable and energy-efficient comfort for you and your family throughout the year.
Available in 5 sizes, ranging from 2.7kW - 8.2kW
Model: |
GWH09ATBXB-K6DNA1C/I/O |
Capacity: |
2.7 kW Cooling, 3 kW Heating |
Room size: |
Small room, up to 20sqm |
WiFi: |
Yes, build-in |
Energy star rating: |
3 / 2 (Cooling/Heating) |

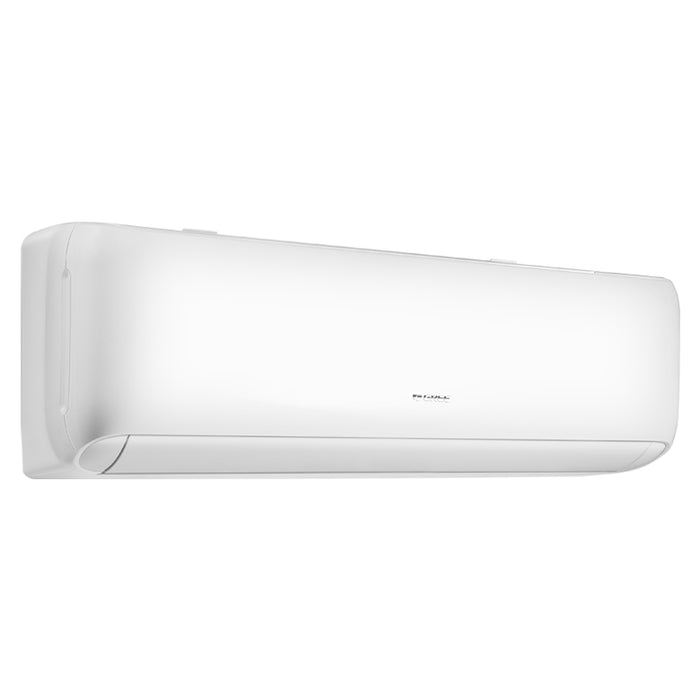

Indoor Dimension: |
783*260*185 mm(WxHxD) |

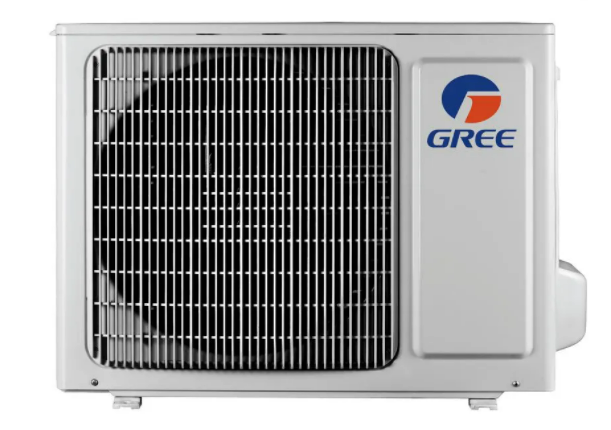

Outdoor Dimension: |
732*555*330 mm(WxHxD) |
In the box: |
Indoor unit, outdoor unit, remote |
Warranty: |
6 years |
Documents: Gree Alto air conditioner brochure.pdf
Feature
- Wifi Control
- R32 Refrigerant
- LED Display
- Timer
- Intelligent Defrosting
- Turbo Button
- Comfortable Sleep Curves
- Auto Clean
- I Feel
- Self-Diagnosis
- Auto Restart
- 0.1'C Accurate Setting
- Energy Saving
- Dred
- Dehumidifying
-
Healthy Filters
Specification
Model Indoor |
GWH09ATBXB-K6DNA1C/I |
Model Outdoor |
GWH09ATBXB-K6DNA1C/O |
Cooling Capacity (Range) |
2.7 kW (0.66~3.4) |
Heating Capacity (Range) |
3.00 kW (0.8~3.8) |
Cooling Power Input |
0.72 kW |
Heating Power Input |
0.77 kW |
Star Rating (Hot/Ave/Cold) - Cool |
3.5/3/3.5 |
Star Rating (Hot/Ave/Cold) - Heat |
3/2/1.5 |
Dehumidifying Volume |
0.8 L/Hr |
Air Flow Volume (Max) |
153 L/Sec |
Sound Power (Min/Max) Ind |
36 ~ 56 dB(A) |
Sound Pressure / Power Out |
51 / 61 dB(A) |
Power Supply (Outdoor) |
220~240V/50Hz/1Ph |
Recommended Circuit Breaker |
10 A |
Nominal Current (cool/heat) |
3.54 / 3.77 A |
Control Wiring |
3 Core plus Earth (4 Cores) |
Indoor Dimensions (WxHxD) |
783 x 260 x 185 mm |
Indoor Net Weight |
8 kg |
Outdoor Dimensions (WxHxD) |
732 x 555 x 330 mm |
Outdoor Net Weight |
24.5 kg |
Operating Temp Range Cool |
-15°C ~ 52°C |
Operating Temp Range Heat |
-15°C ~ 24°C |
Refrigerant Type |
R32 |
Refrigerant Charge |
0.5 kg |
Max Pipe Length (pre-charged) |
15 M (10 M) |
Max Height |
10 M |
Additional Refrigerant |
16 g/m |
Pipe Connection |
1/4" ~ 3/8" mm |
Note: Above parameters are for reference only. Actual parameters may vary.
Warranty
6 year parts and labour warranty
