Fujitsu C2.5kW H3.2kW Reverse Cycle Inverter Split System ASTG09KMTC-set

by Fujitsu
Original price $999.00
Current price $870.00
In Stock
Brand New


The new reverse cycle Lifestyle range is designed to be less obtrusive and integrate seamlessly with the room's interior, featuring a new matte finish.

The Lifestyle Range of wall mounted reverse cycle air conditioning units are Fujitsu General's most efficient with some models reaching a 5 star energy rating.

Other energy management features include human sensor control, economy mode and weekly timers.


Model: ASTG09KMTC/AOTG09KMTC Inverter: Yes
Capacity-cooling: 2.5KW Energy star rating-cooling: 5
Capacity-heating: 3.2 kW Energy star rating-heating: 5

Dimension (HxWxD mm):Indoor 270*834* 222

Dimension (HxWxD mm):Outdoor 542*799*290

Warranty: 5 years WiFi: Optional adapter needed

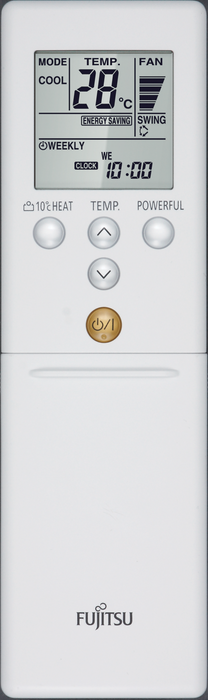

In the box: Indoor unit, outdoor unit, remote


NEW Fujitsu Lifestyle KMTC Brochure.pdf   User Manual.pdf



Designed to be less obtrusive and integrate seamlessly with the room’s interior, the new ASTG18/22/24KMTC models within the range are slimmer than the previous Fujitsu lifestyle units by 30mm* in depth.

The matte finish and smooth edges create a modern aesthetic to suit contemporary homes.


The lifestyle range of wall mounted reverse cycle air conditioning units are Fujitsu General’s most efficient. An improved star rating for heating mode has been achieved across the ASTG18/22/24KMTC product range, along with an improved star rating in cooling mode on the ASTG18KMTC model. Other energy management features include Human Sensor Control, Economy Mode and Weekly Timers.


An intelligent feature which detects movement of people to deliver optimum efficiency and temperature control. When in operation, if the sensor detects no movement in a room after 20 minutes, the air conditioner will automatically switch to energy saving operation, modifying the temperature to minimise energy consumption.

When movement is detected within the room, the air conditioner reverts back to its previous setting.


Air quality is maintained throughout the home with the apple- catechin# filter. Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.


The heat exchange efficiency has been significantly improved with the hi-density and large heat exchanger.


Comfort and convenience features across the lifestyle range allow the air conditioning unit to reach a desired room temperature quickly and efficiently. The units indoor and outdoor fans can run at a lower speed for quieter operation as is recognised whilst operating in low noise and super quiet modes.

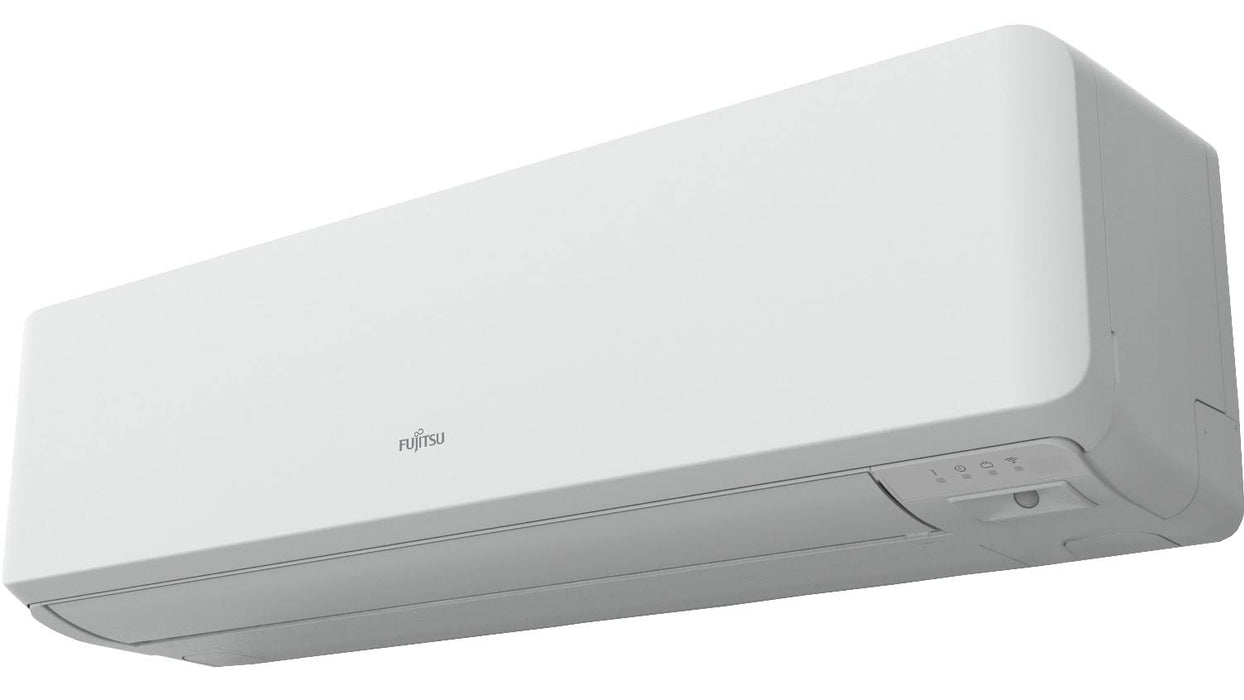

Model No. Indoor Unit ASTG09KMTC

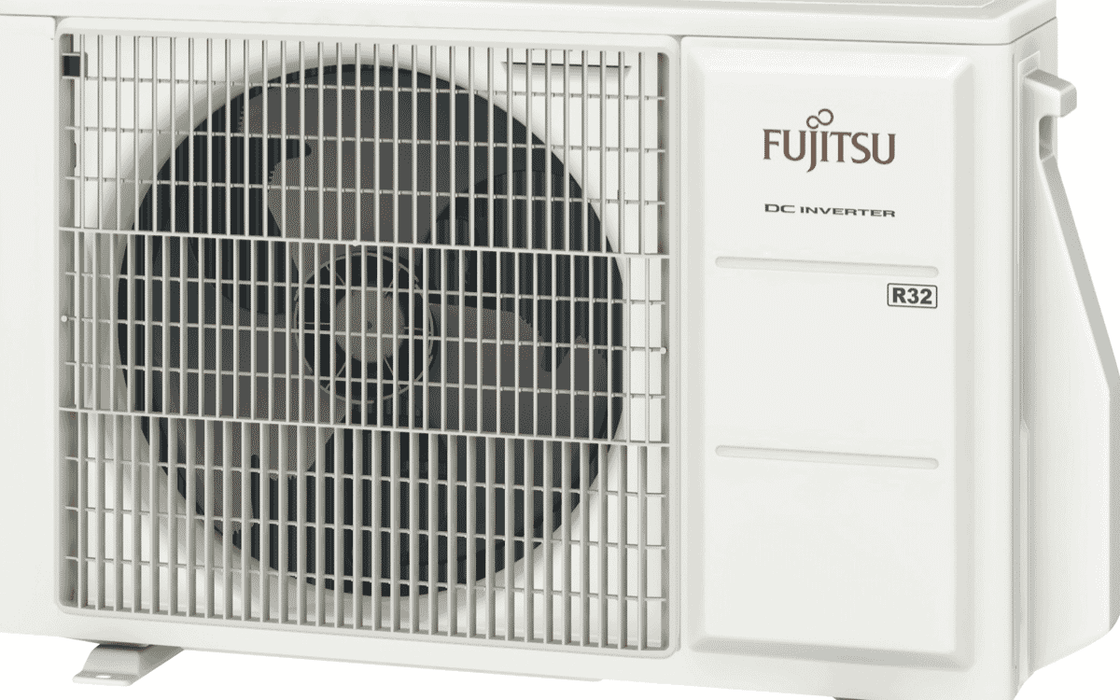

Model No. Outdoor Unit AOTG09KMTC
Operation Type Reverse Cycle
Power Source V / Ph / HZ 240 / 1 / 50
Capacity Cooling kW 2.50 (0.90-3.60)
Capacity  Heating kW 3.20 (0.90-5.30)
Power input Cooling kW 0.53 (0.25-1.04)
Power input Heating kW 0.66 (0.25-1.61)
EER 4.71
COP 4.84
Star Rating Cooling 5
Star Rating Heating 5
Running Current C/H amps 3.0 / 3.5
Moisture Removal l / hr 0.3
Noise Level Cooling dBA 40 / 19
Noise Level Heating dBA 40 / 21
Air Circulation (Indoor - High Fan) C/H 194 / 197
Net Dimensions Indoor mm 270 x 834 x 222
Net Dimensions Indoor kg 10
Net Dimensions Outdoor mm 542 x 799 x 290
Net Dimensions Outdoor kg 32
Piping Connections (Liquid / Suction) mm Ø6.35 / Ø9.52
Max. Pipe Length (Precharged Length) m 20 (15)
Max. Height Difference m 15
Operation Range Cooling °CDB -10 to 46
Operation Range Heating °CDB -15 to 24
Refrigerant R32
