Mitsubishi Heavy Industries Ciara C5kW H5.8kW Reverse Cycle Split System with WiFi DXK18ZTLA-set

Name: Mitsubishi Heavy Industries Ciara C5kW H5.8kW Reverse Cycle Split System with WiFi DXK18ZTLA-set
Brand: Mitsubishi Heavy Industries
SKU: DXK18ZTLA-WF-SET
Price: 1539.0 AUD
Availability: InStock

by Mitsubishi Heavy Industries

$1,799.00

$1,799.00 - $1,799.00

$1,799.00

$1,539.00

$1,539.00 - $1,539.00

$1,539.00

Model: DXK18ZTLA-WF-SET

Availability:

in stock, ready to be shipped

Installation: Click to see details

Quantity

Delivery time & fee

Sydney: 3-4 business days; Free.
Sydney surrounds: 5-7 business days; Flat rate.
Don't ship to: VIC, QLD, NT, SA, WA, TAS.

Overview

The NEW Ciara™ series of split systems incorporates stylish Italian design, with rounded contours and a sleek finish. Compact and lightweight, the Ciara™ series is packed with features including Wi-Fi built-in and Voice control compatibility. Available in reverse cycle models the Ciara™ series is perfect for small to medium spaces.

Model: DXK18ZTLA-WF / DXC18ZTLA-W	Inverter: Yes
Capacity-cooling: 5 kW	Energy star rating-cooling: 3
Capacity-heating: 5.8 kW	Energy star rating-heating: 2.5
Dimension (HxWxD mm):Indoor 294798210	Dimension (HxWxD mm):Outdoor 595780290
In the box: Indoor unit, outdoor unit, remote	WiFi: Yes, build-in
Warranty: 5 years

Documents: New Ciara series Intro Flyer.pdf User Manual.pdf WIFI Set-up Manual.pdf

Feature

BUILT-IN WI-FI

Wi-Fi & voice control now included as standard*. Control your air conditioner anywhere, anytime with your smartphone.

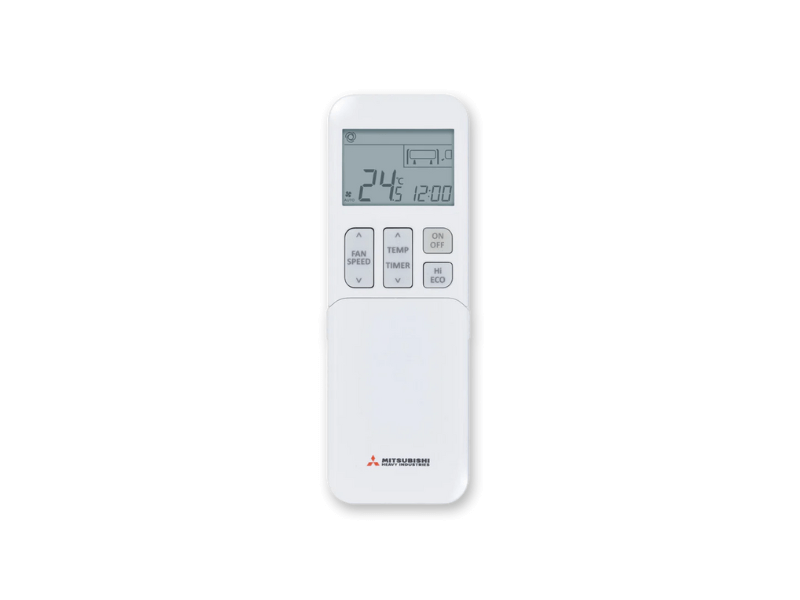

BACKLIT REMOTE CONTROL

Simplified and easier to use remote with backlit screen for dark/night time operation. More accurate temperature control via 0.50C increments.

SILENT MODES

Two levels of silent mode are available to further reduce the outdoor unit noise level.

COMPACT DESIGN

A compact and lightweight design allows for improved installation flexibility and installation into existing or smaller spaces such as apartments.

JET AIR TECHNOLOGY

Air flow is regulated using the same blade technology as that in jet engines which produces powerful, yet efficient air flow.

ALLERGEN CLEAR FILTER

Captures airborne allergens such as hair, pollen and dust particles before neutralising them and any bacteria using specially formulated enzymes.

Specification

Capacity	5.0kW

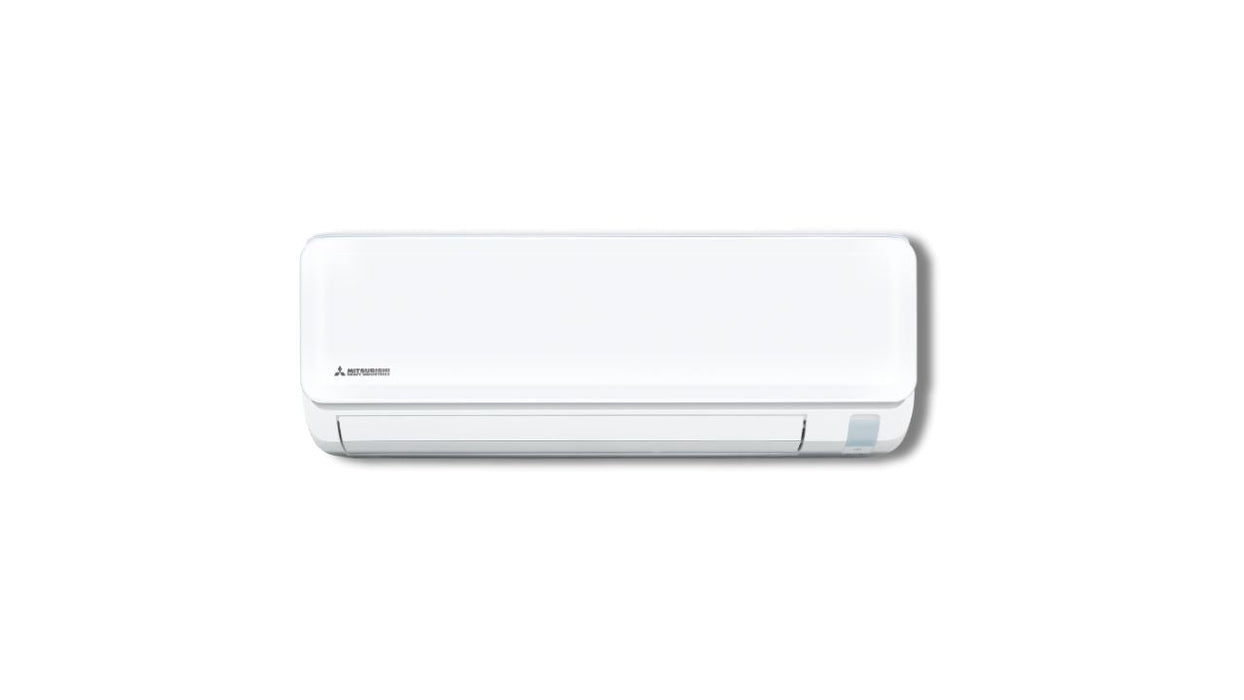

Indoor	DXK18ZTLA-WF

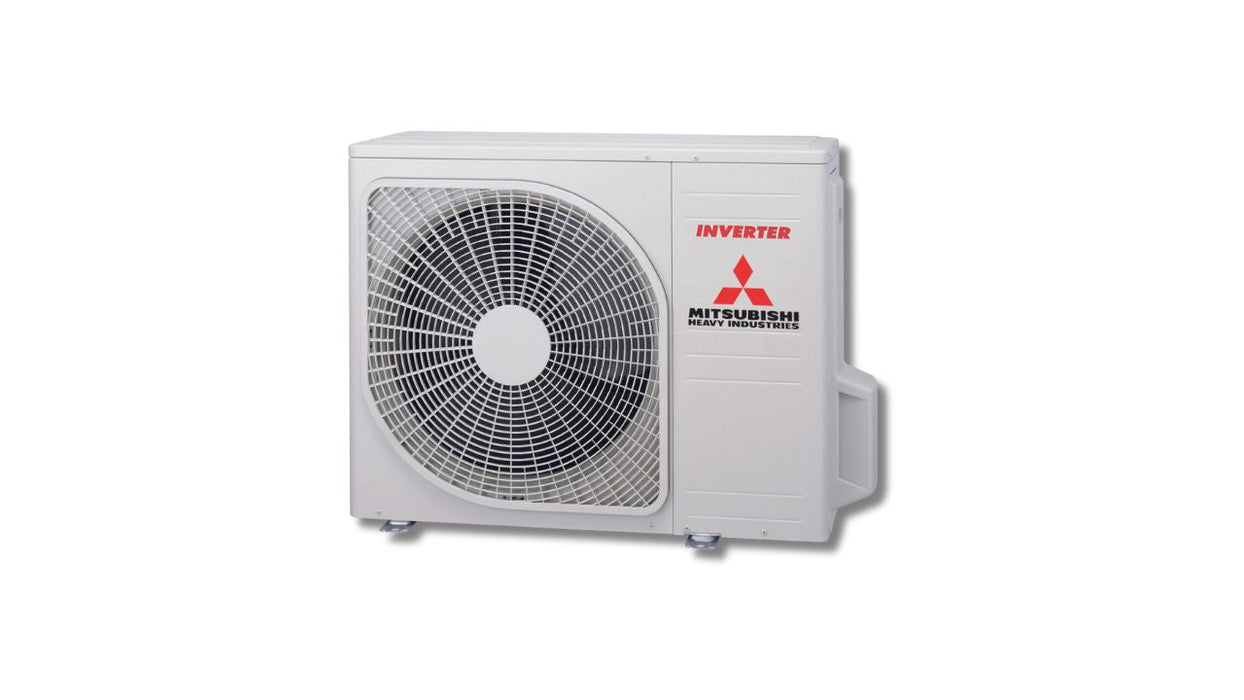

Outdoor	DXC18ZTLA-W
Power Source (Outdoor Unit)	1 Phase, 220 - 240V, 50Hz
Nominal Capacity (Cooling)	5.0 (1.3~5.3) kW
Nominal Capacity (Heating)	5.8 (1.3~6.3) kW
Power Consumption (Cooling)	1.59 (0.29-1.77) kW
Power Consumption (Heating)	1.62 (0.27~2.04) kW
Maximum Power Consumption	2.25 kW
Running Current (Cooling)	6.7 A
Running Current (Heating)	6.8 A
Inrush Current, Maximum Current	5.0, 14.5 A
Sound Pressure Level Indoor	47-40-32-25 dB(A)
Sound Pressure Level Outdoor	52 dB(A)
Energy Rate Cooling	3
Energy Rate Heating	2.5
External Dimensions (Indoor)	294x798x210 mm
External Dimensions (Outdoor)	595x780(+62)x290 mm
Net weight (Indoor)	9.5 kg
Net weight (Outdoor)	33 kg
Airflow indoor cooling	208-173-120-90 l/s
Airflow indoor heating	210-192-148-107 l/s
Refrigerant	R32
Refrigerant Amount	0.9 kg
Refrigerant Pre-Charged to Pipe	15 m
Liquid line	Ø6.35 mm
Gas line	Ø12.7 mm
Connection Method	Flare connection
Maximum Pipe Length (One Way)	25 m
Max Vertical Height Diff. Between O.U. and I.U.	20 (O.U. above I.U.) / 20 (O.U. below I.U.)
Standard Accessories	Allergen Clear Filter x 1, Wi-Fi
Demand Response (AS4755)	Yes
