Overview
The NEW Ciara™ series of split systems incorporates stylish Italian design, with rounded contours and a sleek finish. Compact and lightweight, the Ciara™ series is packed with features including Wi-Fi built-in and Voice control compatibility. Available in reverse cycle models the Ciara™ series is perfect for small to medium spaces.
|
Model: DXK12ZTLA-WF / DXC12ZTLA-W
|
Inverter: Yes |
|
Capacity-cooling: 3.3 kW
|
Energy star rating-cooling: 3 |
|
Capacity-heating: 3.8 kW |
Energy star rating-heating: 3
|
|
Dimension (HxWxD mm):Indoor 294*798*210
|
Dimension (HxWxD mm):Outdoor 540*645*275
|
|
In the box: Indoor unit, outdoor unit, remote |
WiFi: Yes, build-in |
|
Warranty: 5 years
|
|
Documents:
New Ciara series Intro Flyer.pdf User Manual.pdf WIFI Set-up Manual.pdf
Feature
|
BUILT-IN WI-FI
Wi-Fi & voice control now included as standard*. Control your air conditioner anywhere, anytime with your smartphone.
|

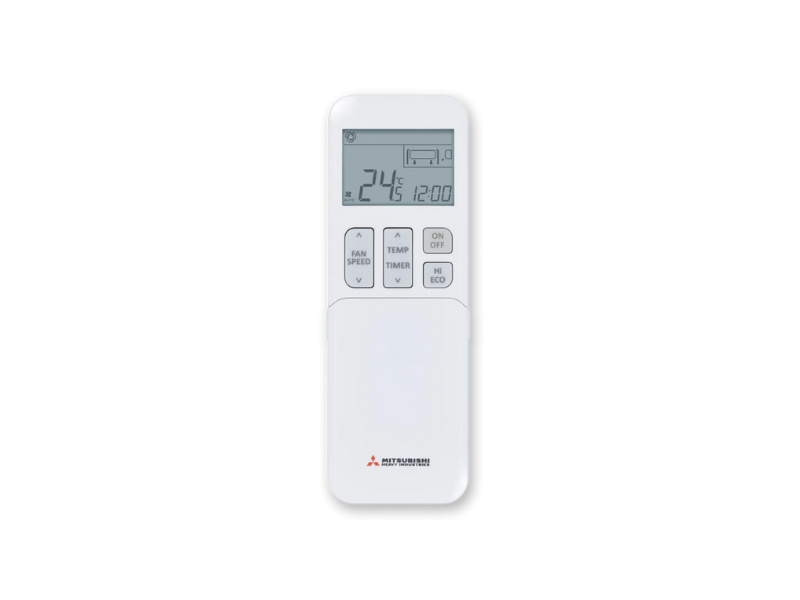

BACKLIT REMOTE CONTROL
Simplified and easier to use remote with backlit screen for dark/night time operation. More accurate temperature control via 0.50C increments.
|
|
SILENT MODES
Two levels of silent mode are available to further reduce the outdoor unit noise level.
|
COMPACT DESIGN
A compact and lightweight design allows for improved installation flexibility and installation into existing or smaller spaces such as apartments.
|
|
JET AIR TECHNOLOGY
Air flow is regulated using the same blade technology as that in jet engines which produces powerful, yet efficient air flow.
|
ALLERGEN CLEAR FILTER
Captures airborne allergens such as hair, pollen and dust particles before neutralising them and any bacteria using specially formulated enzymes.
|
Specification
| Indoor |
DXK12ZTLA-WF |
| Outdoor |
DXC12ZTLA-W |
| Power Source (Outdoor Unit) |
1 Phase, 220 - 240V, 50Hz |
| Nominal Capacity (Cooling) |
3.3 (0.8~3.7) kW |
| Nominal Capacity (Heating) |
3.8 (1.0~4.9) kW |
| Power Consumption (Cooling) |
0.90 (0.19~1.30) kW |
| Power Consumption (Heating) |
0.90 (0.21~1.50) kW |
| Maximum Power Consumption |
1.65 kW |
| Running Current (Cooling) |
4.1 A |
| Running Current (Heating) |
4.1 A |
| Inrush Current, Maximum Current |
4.9, 9.0 A |
| Sound Pressure Level Indoor |
45-37-27-22 dB(A) |
| Sound Pressure Level Outdoor |
50 dB(A) |
| Energy Rate Cooling |
3 |
| Energy Rate Heating |
3 |
| External Dimensions (Indoor) |
294x798x210 mm |
| External Dimensions (Outdoor) |
540x645(+57)x275 mm |
| Net weight (Indoor) |
9 kg |
| Net weight (Outdoor) |
24 kg |
| Airflow indoor cooling |
187-142-90-73 l/s |
| Airflow indoor heating |
197-163-113-83 l/s |
| Refrigerant |
R32 |
| Refrigerant Amount |
0.59 kg |
| Refrigerant Pre-Charged to Pipe |
10 m |
| Liquid line |
Ø6.35 mm |
| Gas line |
Ø9.52 mm |
| Connection Method |
Flare connection |
| Maximum Pipe Length (One Way) |
20 m |
| Max Vertical Height Diff. Between O.U. and I.U. |
15 (O.U. above I.U.) / 15 (O.U. below I.U.) |
| Standard Accessories |
Allergen Clear Filter x 1, Wi-Fi |
| Demand Response (AS4755) |
No |
Warranty
5 year parts and labour warranty
