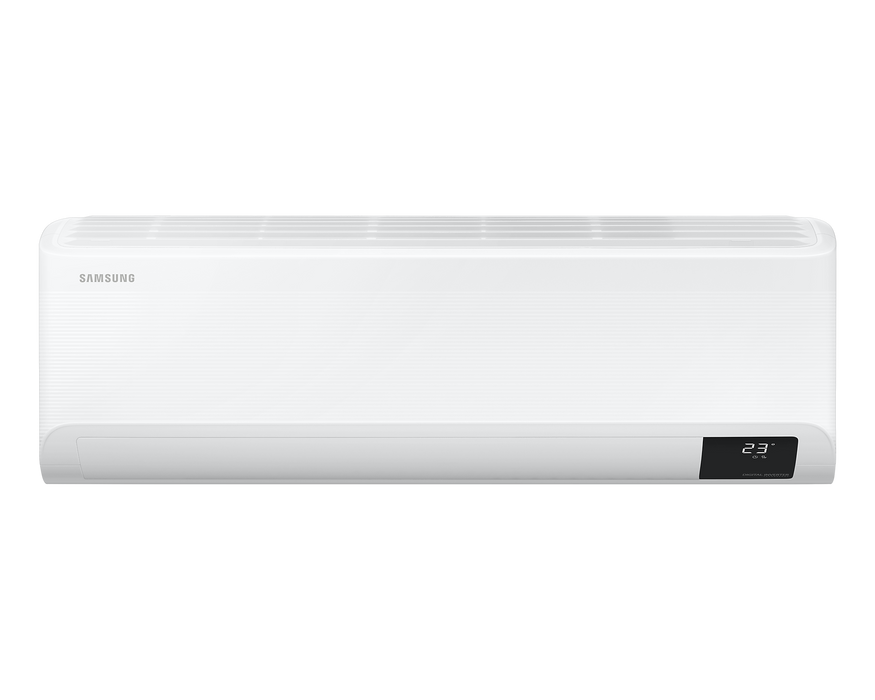

Samsung GEO 3.5kW Cool / 4kW Heat Inverter Split Air Conditioner AR5500

Samsung GEO AR5500 3.5kW Cool / 4kW Heat Inverter Split Air Conditioner AR12TXHYBWKNSA

by Samsung
Sold out
$1,059.00
$899.00
Brand New
Model AR12TXHYBWKNSA

Overview

Samsung GEO air conditioners feature innovative cooling technology to cool your space fast, and at the same time minimise energy consumption. The advanced design consists of a large fan unit; wide air intake area and a wide blade to help disperse the conditioned air far and wide.



Model: AR12TXHYBWKNSA / AR12TXHYBWKXSA Inverter: Yes
Capacity-cooling: 3.5 kW Energy star rating-cooling: 3
Capacity-heating: 4 kW Energy star rating-heating: 3

Dimension (HxWxD mm):Indoor 889*299*215

Dimension (HxWxD mm):Outdoor 790 x 548 x 285
In the box: Indoor unit, outdoor unit, remote WiFi: No
Warranty: 5 years



Samsung GEO wall mounted split system.pdf Samsung GEO User Manual.pdf

Feature

Download: Samsung GEO wall mounted split system.pdf Samsung GEO User Manual.pdf

Fast Cooling

Cools 43% faster* – designed to help you stay cool.

Digital Inverter Boost

Digital Inverter Boost technology gives you an energy saving of up to 75%.*

Temperature Display

A numerical and intuitive icon displays temperature and key operating functions.

Usage

Displays energy consumption (0.1-99kWh) for the usage for the time the unit is turned ON to the time the unit is turned OFF.

ECO Mode

Helping you to save energy.

Display Off

Display lighting can be turned off using the remote controller.

Auto Clean

This feature helps to keep the inside of the indoor unit dry and clean.

Easy Filter Plus

Easy-to-clean filter.

Specification

Model AR12TXHYBWKNSA / AR12TXHYBWKXSA
Cooling
Capacity (Min.-Rated-Max.)(kw) 0.99 / 3.50 / 4
Current Input (Min.-Rated-Max.)(A) 1.3 / 4.5 / 5
AEER/EER 3.79/3.8
Star Rating 3
Sound Pressure Level H/L (dB) 40 / 17
Air Volume (IN)(L/s) 183 / 173 / 155 / 137
Heating
Capacity (Min.-Rated-Max.)(kW) 0.74 / 4 / 5.5
Current Input (Min.-Rated-Max.)(A) 1.0 / 5.1 / 6.8
ACOP/COP 3.8/3.81
Star Rating 3
Sound Pressure Level (dB) 40/17
Air Volume (IN)(L/s) 183 / 173 / 155 / 137
Indoor Dimensions (HxWxD) 889 x 299 x 215
Weight 10.1
Outdoor Dimensions (HxWxD) 790 x 548 x 285
Weight 29.8
Breaker Size (A) 15
Operating Range (Outdoor)(Cool) -10 ~ 46 °C
Operating Range (Outdoor)(Heat) -15 ~ 24 °C
