Carrier C8.0kW H10.1kW Reverse Cycle Split Air Conditioner SET-42QHB080N8-1

Carrier C8.0kW H10.1kW Reverse Cycle Split Air Conditioner SET-42QHB080N8-1

by Carrier
Sale
$1,999.00
$1,989.00
In Stock
Brand New
Model 42QHB080N8-1

Overview

Introducing the Inverter Hi-Wall Split System – Aura Ultimate. Packed full of features that will bring comfort to your life in the extremes of Summer and Winter.



Model: 42QHB080N8-1 / 38QHB080N8-1 Inverter: Yes
Capacity-cooling: 8 kW Energy star rating-cooling: 4
Capacity-heating: 10.1 kW Energy star rating-heating: 3

Dimension (HxWxD mm):Indoor 1259x282x362

Dimension (HxWxD mm):Outdoor 946x410x810

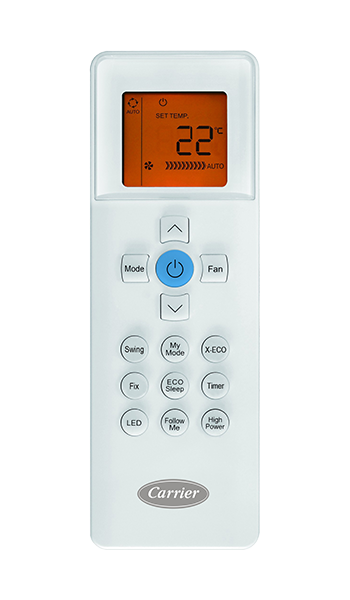

In the box: Indoor unit, outdoor unit, remote WiFi: Optional adapter needed
Warranty: 5 years



Carrier Aura Ultimate Brochure.pdf Aura User Manual.pdf

Feature

Key features

  • Brushless DC inverter motor designed to use electricity efficiently and effectively.
  • Rapid turbo heat and cool function which increases power temporarily to achieve the desired temperature quickly before returning to normal power.
  • Sleep Mode: In cooling or heating mode the system will regulate the air around you throughout the night automatically adjusting the temperature and fan speeds to suit the set mode, without you even noticing.
  • X-ECO mode: Cleverly steps the electrical frequency and fan speeds down while maintaining comfort for more economical management of running costs.
  • 2 Step Filtration ensures filtering of dust particles and common household odours.
  • Long distance air flow up to 12 meters on the larger models includes the 3D air flow function which circulates the air around the room swiftly and calmly to those hard to reach places.
  • The outdoor fan motor will rotate in reverse once the unit stops assisting in the removal of dust, dirt and other particles which may be present outside, helping to keep the outdoor unit clean and running effectively and efficiently.
  • Reverse cycle for heating and cooling.
  • Self-cleaning removes moisture which can cause mould to form on the indoor unit.
  • Low maintenance and easy to install.
  • 5 year warranty for consumer confidence.

Specification

Model Number - System 53QHB080N8-1
- Indoor 42QHB080N8-1
- Outdoor 38QHB080N8-1
Refrigerant Type R32
Power Supply 220-240V,
1Ph,50Hz
Cooling Capacity - Rated kW 8
Cooling Capacity - Range (Min / Max) kW 3.13/9.13
Cooling Star Rating (Hot / Average / Cold) 4/4/4
Cooling Operating Current A 9.1
Heating Capacity - Rated kW 10.1
Heating Capacity - Range (Min / Max) kW 2.91/10.83
Heating Star Rating (Hot/Average/Cold) 3/2/1.5
Heating Operating Current A 12.7
Indoor Dimension (W×D×H) mm 1259x282x362
Indoor Packing (W×D×H) mm 1340x450x380
Indoor Net/Gross Weight kg 19.5/25.4
Indoor Cooling Airflow (Hi/Mi/Lo) m³/hr 1356/1093/965
Indoor Moisture Removal L/hr 2.3
Indoor Sound Pressure (Hi/Mi/Lo) - 1m dB(A) 50/44/40
Outdoor Dimension (W×D×H) mm 946x410x810
Outdoor Packing (W×D×H) mm 1090x500x875
Outdoor Net Weight / Gross Weight kg 64.5/69.2
Outdoor Inverter Compressor Type  ROTARY/Twin
Outdoor Cooling - (Sound Pressure) (H) dB(A) 64.4
Outdoor Cooling Usable Temperature Range  0～50
Outdoor Heating Usable Temperature Range  -15～30
Liquid Line Ø/Gas Line Ø (inch) 3/8' / 5/8"
Coupler Style  Flare joint
Minimum Length m 3
Maximum Length m 50
Pre-charged m 5
Maximum Height Difference (Above/Below) m 25
